The NCN5150 is a single-chip integrated slave transceiver for use in two-wire Meter Bus (M-BUS) slave devices and repeaters. This transceiver provides all of the functions needed to satisfy the European Standards EN 13757-2 and EN 1434-3 describing the physical layer requirements for M-BUS. This particular version (SOIC version) includes a programmable power level of up to 2 unit loads, which are available for use in external circuits through a 3.3 V LDO regulator. The NCN5150 can provide communication up to the maximum M-BUS communication speed of 38,400 baud (half-duplex).
Evaluation/Development Tools
产品
类型
Ref. Design
状态
Part Used
行动

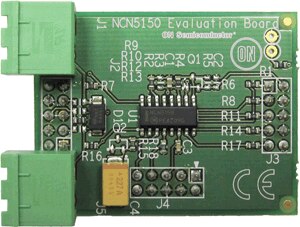

Wired M-BUS Slave Transceiver, 2 unit loads, Evaluation Board
$50.000000
More Details
