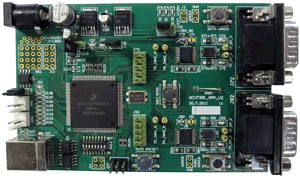

NCV7381A0V2GEVB: FlexRay ® Transceiver, Clamp 30 Evaluation Board

The NCV7381A0V2GEVB is designed to quickly evaluate the NCV7381, a single channel FlexRay® transceiver compliant with the FlexRay Electrical Physical Layer Specification Rev. 3.0.1 and capable of communicating at speeds of up to 10 Mbit/s. The device provides differential transmit and receive capability between a wired FlexRay communication medium on one side and a protocol controller and a host on the other side. The NCV7381 mode control functionality is optimized for nodes permanently connected to car battery. Further, the NCV7381 offers excellent EMC and ESD performance.
产品 状况 Compliance 简短说明 所用产品 行动
NCV7381A0V2GEVB Active
FlexRay ® Transceiver, Clamp 30 Evaluation Board NCV7381ADP0R2G
类型 文档标题 文档编号/大小 修订号
Eval Board: Manual NCV7381 FlexRay Transceiver Evaluation Board User's Manual EVBUM2571/D - 5931 KB  0
Eval Board: BOM NCV7381A0V2GEVB Bill of Materials (ROHS Compliant) NCV7381A0V2GEVB_BOM_ROHS_rev0 - 150 KB  2
Eval Board: Gerber NCV7381A0V2GEVB Gerber Layout Files (Zip Format) NCV7381A0V2GEVB_Gerber - 298 KB  0
Eval Board: Schematic NCV7381A0V2GEVB Schematic NCV7381A0V2GEVB_SCHEMATIC.rev0 - 147 KB  0
Eval Board: Test Procedure NCV7381A0V2GEVB Test Procedure NCV7381A0V2GEVB_TEST_PROCEDURE.rev0 - 140 KB  0
