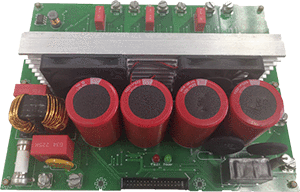

SEC-6D6KW-OBC-TTP-GEVB: A 6.6kW OBC evaluation board using Totem pole topology
This 6.6kW OBC evaluation board provides a reference design on the power stage of totem pole interleave PFC topology which consists of 650V N-Channel Power MOSFET SUPERFET® III (NVHL025N65S3), monolithic high- and low-side gate-driver IC (FAN7191_F085) in low-speed leg, high switching performance SiC MOSFET (NVHL060N090SC1), Isolated High Current and High Efficiency IGBT driver (NCV57000DWR2G) in high-speed leg.
With these high performance devices and totem pole topology, the system efficiency reaches 97% (typical value), and hardware protection of OCP and OVP is also provided for high system reliability. Onboard auxiliary power system is designed to supply every circuits on the board and the control board without outside DC source. Meanwhile, flexible control interfaces are available to adapt different controller boards.
Visit the On Board Charging solutions site to learn how ON Semiconductor can help you a comprehensive and advanced portfolio. |
特性和应用
特性
|
|
应用
|
评估/开发工具信息
| 产品 | 状况 | Compliance | 简短说明 | 所用产品 | 行动 | |
|---|---|---|---|---|---|---|
| SEC-6D6KW-OBC-TTP-GEVB | Active |
|
A 6.6kW OBC evaluation board using Totem pole topology |
FAN7191MX-F085
,
FSL336LRN
, NCL30059BDR2G , NCV2003SN2T1G , NCV2901DR2G , NCV57000DWR2G , NVHL025N65S3 , NVHL060N090SC1 , NVMFD5C680NLT1G |
技术文档
| 类型 | 文档标题 | 文档编号/大小 | 修订号 |
| Eval Board: Manual | 6.6 kW Totem-Pole Demo Board User's Manual | EVBUM2784/D - 2133 KB | 0 |
| Eval Board: Schematic | SEC-6D6KW-OBC-TTP-GEVB Schematic | SEC-6D6KW-OBC-TTP-GEVB_SCHEMATIC - 370 KB | 0 |
| Eval Board: Gerber | SEC-6D6KW-OBC-TTP-GEVB Gerber Layout Files (Zip Format) | SEC-6D6KW-OBC-TTP-GEVB_GERBER - 5793 KB | 0 |
| Eval Board: BOM | SEC-6D6KW-OBC-TTP-GEVB Bill of Materials (ROHS Compliant) | SEC-6D6KW-OBC-TTP-GEVB_BOM_ROHS - 395 KB | 0 |
