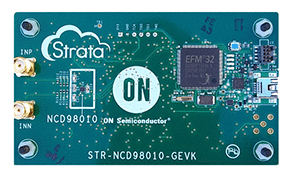

STR-NCD98010-GEVK: Strata Enabled NCD98010 12-bit SAR ADC Evaluation Board

The STR-NCD98010-GEVB provides an evaluation board for the NCD98010 driver using Strata Developer Studio. The NCD98010 is a ultra low power 12-bit SAR ADC that can run at up to 2MSPS. The NCD98010 comes in a small 1.5mm x 1.5mm DFN package. This evaluation board is used with Strata to control the NCD98010 and to provide dynamic performance metrics for different clock speeds and supply voltages. See the Strata webpage at www.onsemi.com/strata for more details!
Click to Download Strata
特性和应用

特性

  • 12-bit Analog to Digital Conversion
    - Fully Differential Input
    - Low 2pF Input Capacitance
  • Digital SPI Interface
    - Available in Signed and Unsigned Output Formats
  • Split Analog / Digital Supplies
    - Digital and Analog Supplies can be Supplied Separately from 1.65V to 3.6V
  • Low Power Consumption
    - 7uA at 100 kSPS
    - Analog Current Consumption CAN to go down to nano-amps with Slower Clock Rates
  • Small Package Size
    - 1.5 x 1.5 mm 8-pin X2QFN
  • Pre-Calibrated

应用

  • Low-Power Data Acquisition
    - Battery-Powered Equipment
    - Level Sensors
    - Ultrasonic Flow Meters
    - Motor Controls
    - Wearable Fitness Devices
    - Portable Medical Equipment
    - Glucose Meters
评估/开发工具信息
产品 状况 Compliance 简短说明 所用产品 行动
STR-NCD98010-GEVK Active
Pb-free
Strata Enabled NCD98010 12-bit SAR ADC Evaluation Board 2N7002W ,  NCD98010XMXTAG ,
NCP160BMX330TBG ,  NCP1729SN35T1G ,
NCP705MT33TCG ,  NCS20032DMR2G ,
NCS210RSQT2G ,  NSR20F20NXT5G ,
SESD7L5.0DT5G
技术文档
类型 文档标题 文档编号/大小 修订号
Software Strata Setup Software for Microsoft Windows Strata setup Windows - 103802 KB Locked  2.6.0
Eval Board: BOM STR-NCD98010-GEVK Bill of Materials (ROHS Compliant) STR-NCD98010-GEVK_BOM_ROHS - 263 KB  0
Eval Board: Gerber STR-NCD98010-GEVK Gerber Layout Files (Zip Format) STR-NCD98010-GEVK_GERBER - 374 KB  0
Eval Board: Schematic STR-NCD98010-GEVK Schematic STR-NCD98010-GEVK_SCHEMATIC - 284 KB  0
Eval Board: Manual STR-NCD98010-GEVK User Guide STR-NCD98010-GEVK_USER_GUIDE - 1686 KB  0
Video 2 MSPS Sample Rate SAR ADC | NCD9801 WVD17481/D
Video Getting Started with the NCD9801 SAR ADC WVD17482/D
